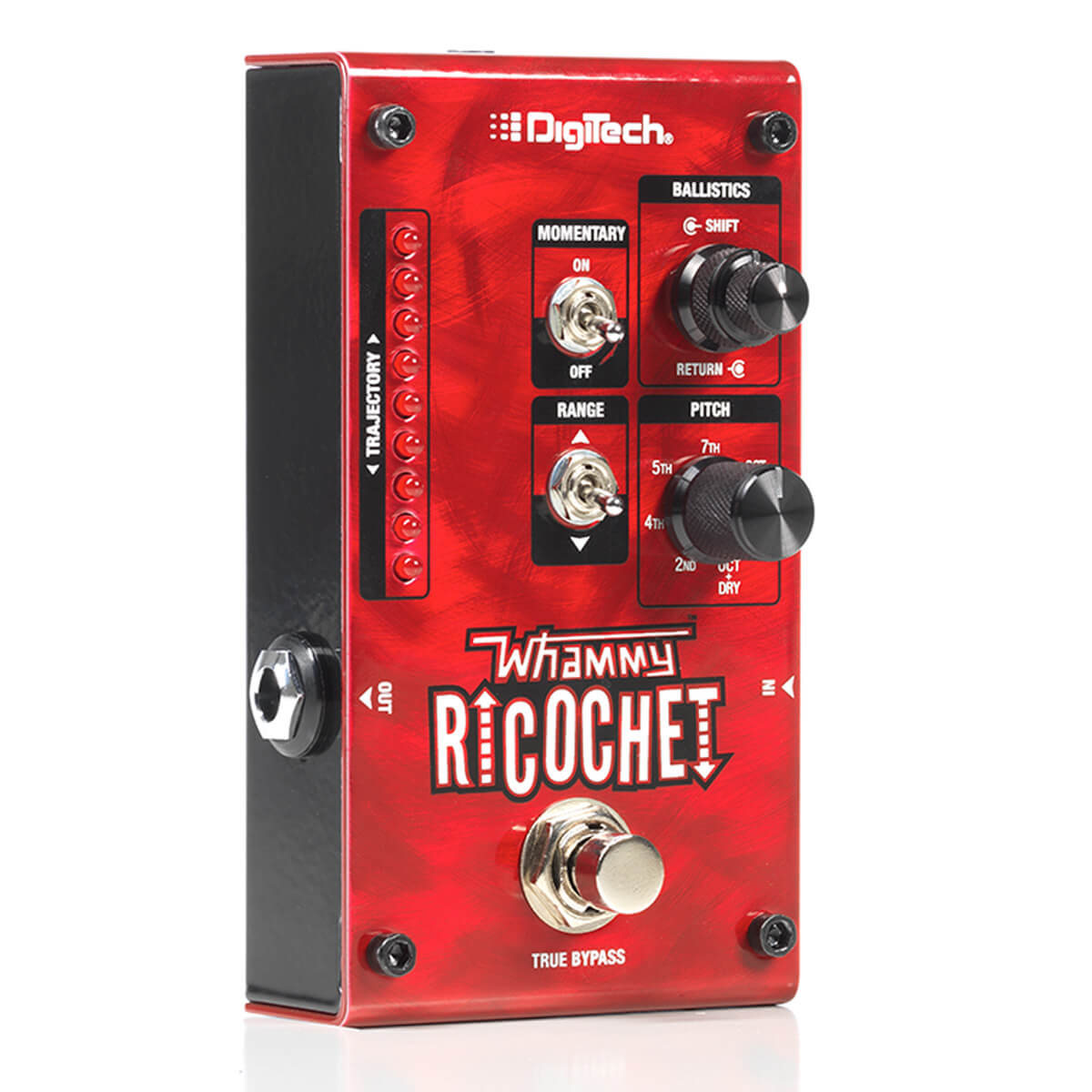

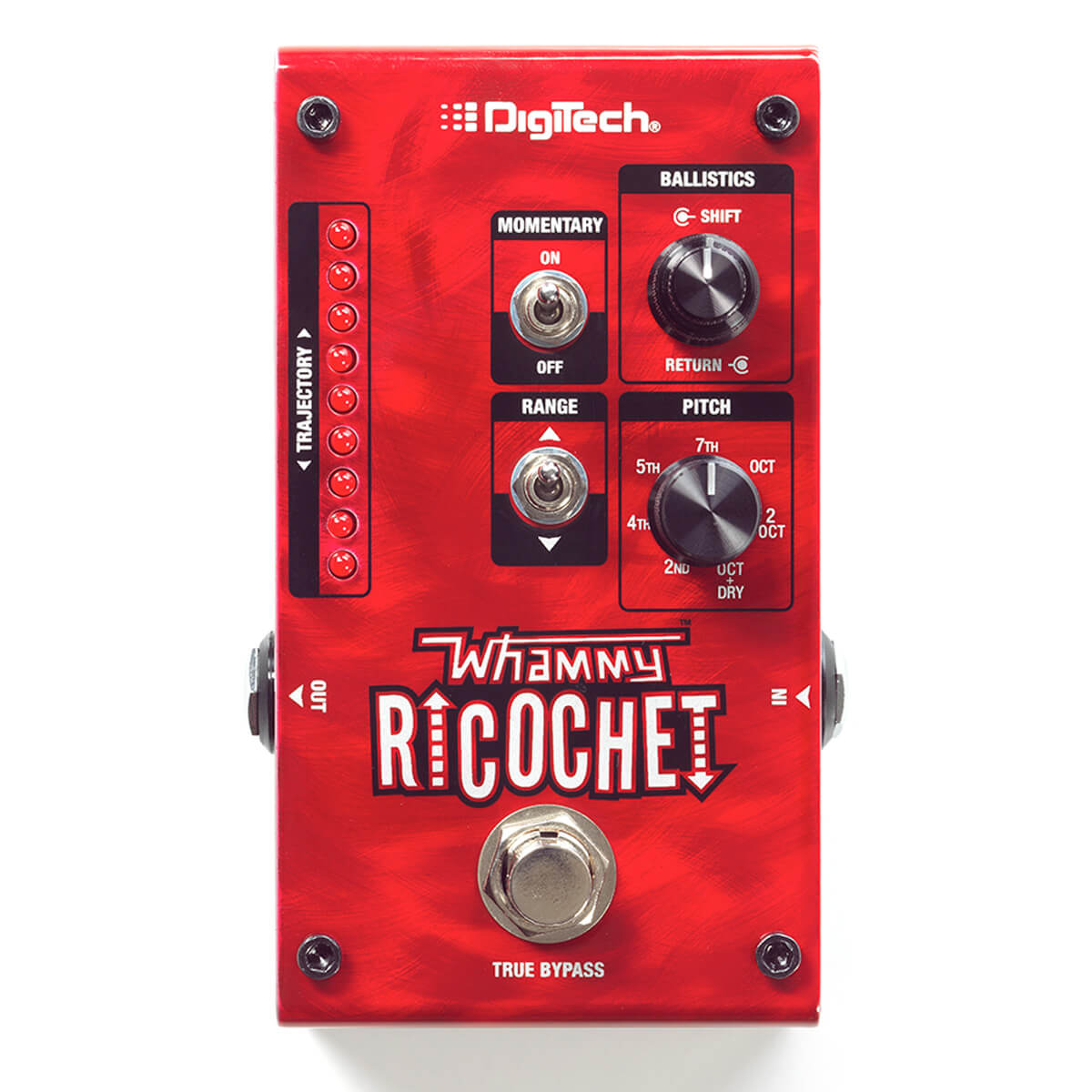

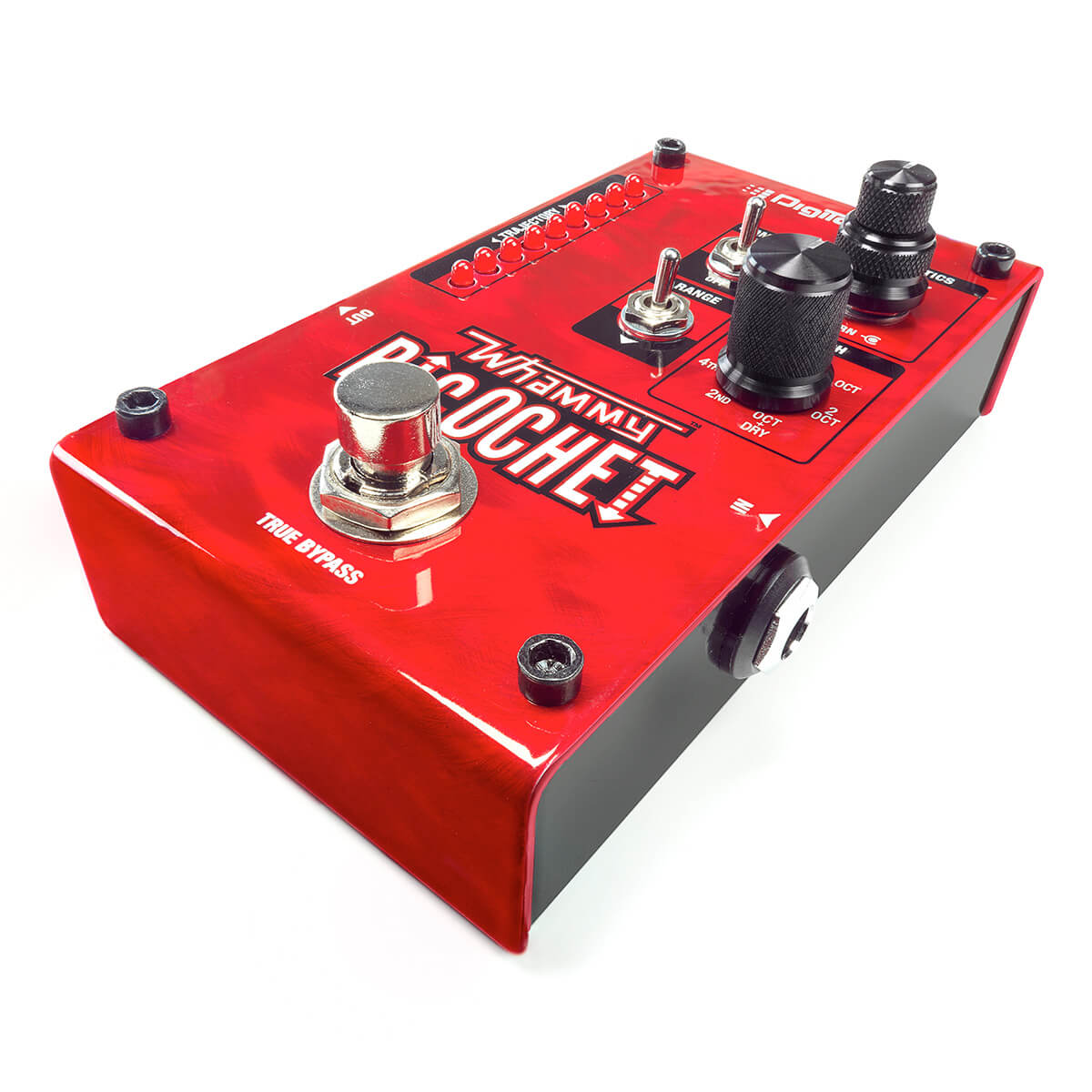

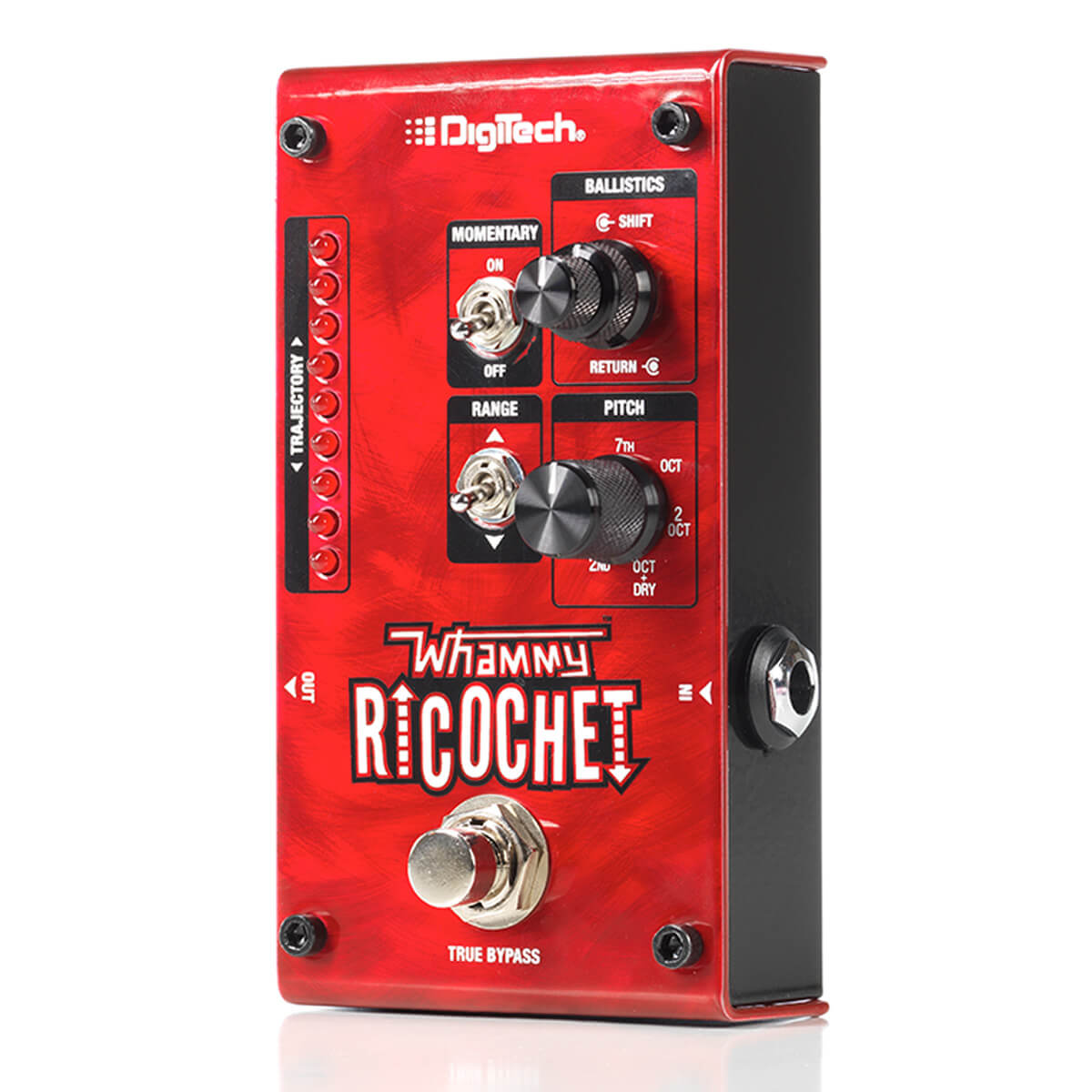

Digitech Whammy Ricochet Pitch Shift Pedal

The Whammy Ricochet lets you bounce your playing up or down in pitch in controlled or crazy shifts. A momentary switch and customizable independent rise and fall time ballistics, allow you to get the Whammy action you know and love without the use of a treadle. Just hold your foot on the footswitch and let the Ricochet do the rest. Seven pitch selections - 2nd, 4th, 5th, 7th, Octave, Double Octave, and Octave+Dry, as well as a toggle to select up or down for the selected pitch. The Whammy Ricochet also has latching footswitch mode so you can rise or fall to pitch and stay there, and an LED ladder that shows your shift trajectory at all times. All these controls combine to create classic Whammy pitch-shifting as well as new sounds never heard before.

• Classic Whammy effects without a bulky treadle.
• Pitch bends of up to 2 octaves up or down are controlled with a momentary footswitch.
• 7 pitch intervals and a Range toggle switch provide plenty of tone-bending options.
• Customizable control of Shift and Return time.
• LED Trajectory Ladder yields instant visual feedback.
• Latching footswitch mode to lock rise or fall of pitch.
• True bypass design preserves your tone.

• Controls:

  • Ballistics Control
  • Pitch Control
  • Range Switch
  • Momentary Switch
  • Effect On/Off

  Sample Rate:

  • 44.1 kHz in classic mode
  • 22 kHz in chords mode

  Frequency Response:

  • 20 Hz-16 kHz (classic mode)
  • 20 Hz-11 kHz (chords mode)

  Signal to Noise Ratio:

  • -106dB (A weighted); ref = max level, 22 kHz bandwidth

  A/D/A Converter:

  • 24-bit

  THD:

  • 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain

  Power Consumption:

  • 2.1 Watts (235 mA typical @ 9 VDC)

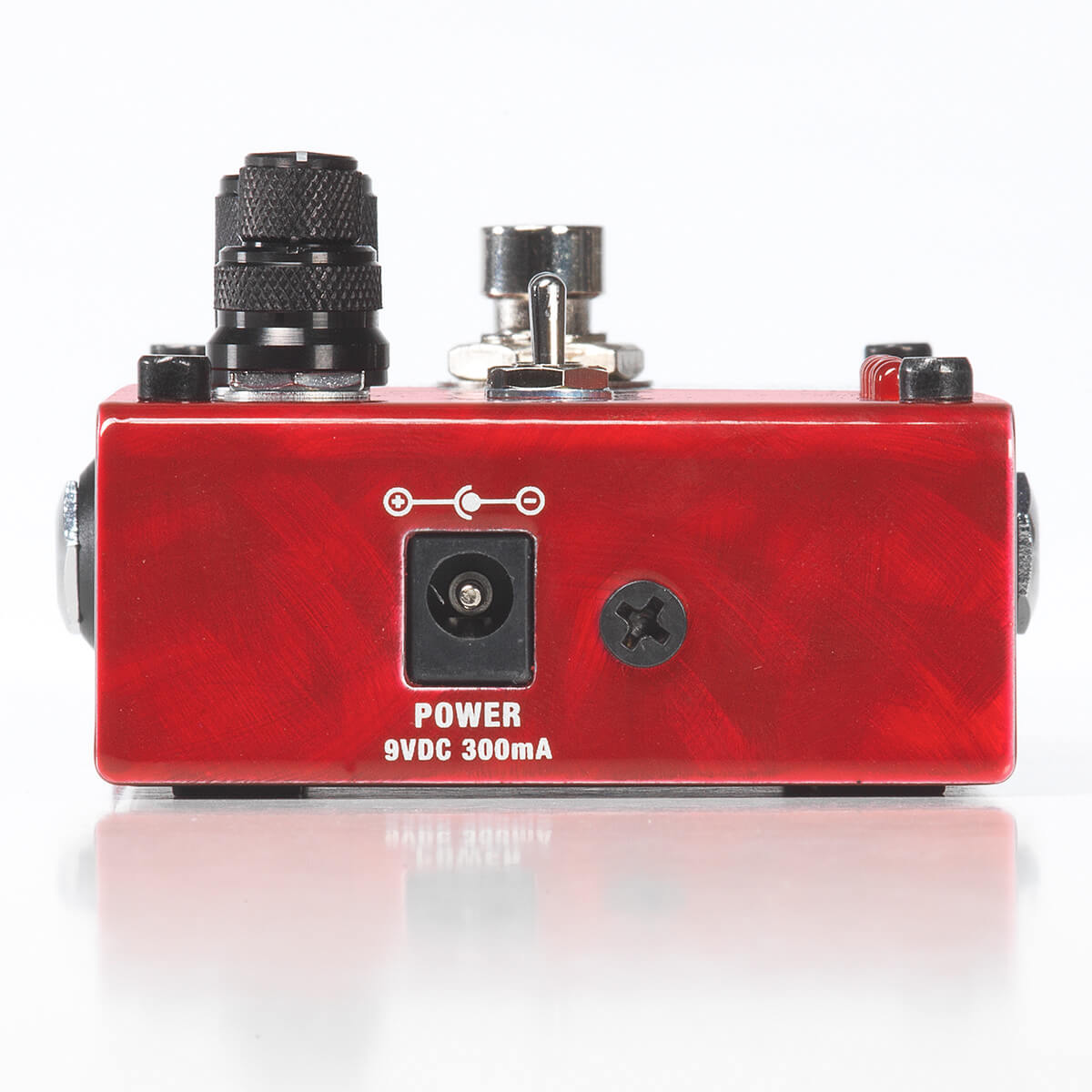

  Power Requirements:

  • 9V DC External Adapter (sold separately)

  Power Supply:

  • PS0913DC-01 (US, JA, EU)
  • PS0913DC-02 (AU, UK)

  Power Adapter Output:

  • 9V DC 1.3A

  Dimensions:

  • Length: 4.75" (122mm)
  • Width: 2.875" (76mm)
  • Height: 1.75" (47mm)
  • Weight: 0.8 lbs.

  Audio Output:

  • Output: 1/4" Unbalanced (Tip-Sleeve)
  • Max Output Level: +10 dBu
  • Output Impedance: 1 kΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)

  Audio Input:

  • Input: 1/4" Unbalanced (Tip-Sleeve)
  • Max Input Level: +5 dBu
  • Input Impedance: 1 MΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
