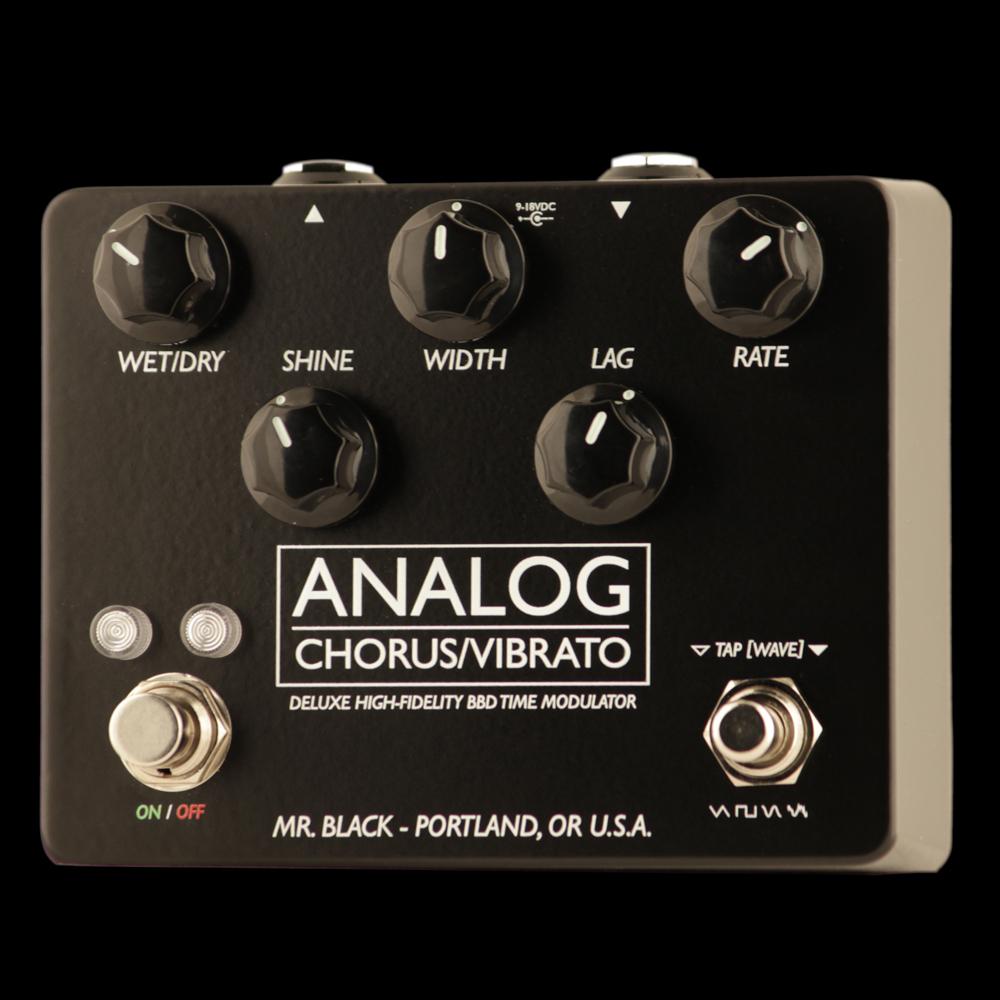

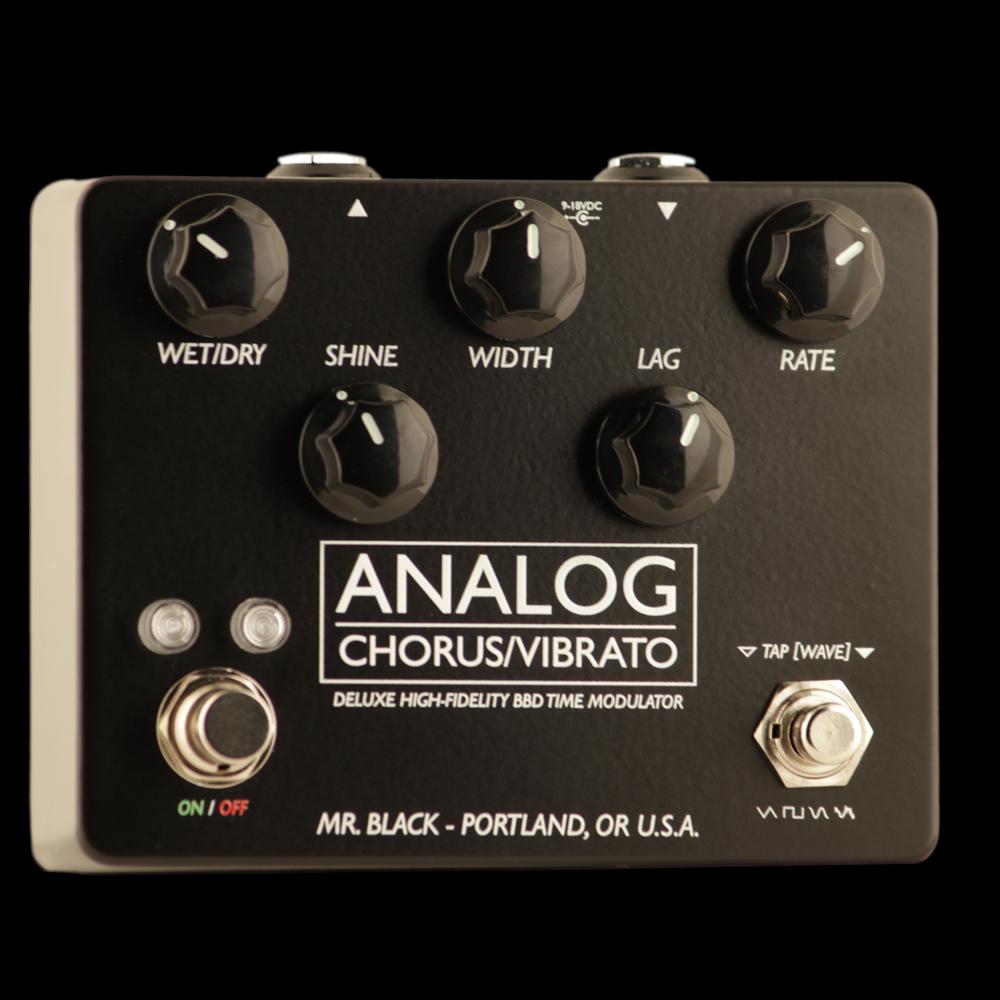

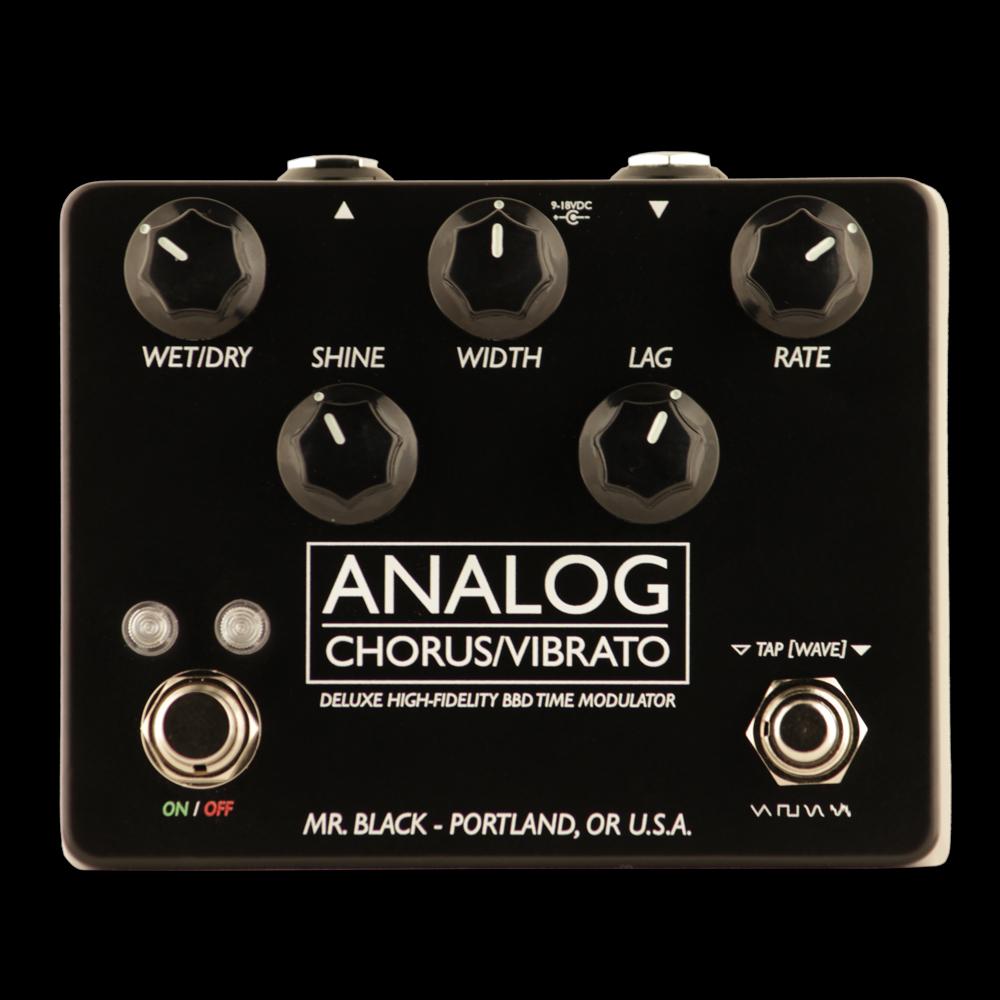

Mr. Black Analog Chorus Vibrato Deluxe Pedal

Designed as an expansion of the extremely-limited and highly-coveted 3-knob Analog Chorus/Vibrato, the Analog Chorus/Vibrato Deluxe builds upon the incredible sound and fidelity of the original while including even more options, controls, and tones, all quickly, easily, and intuitively tuned by the operator.

Features:

• Digitally-Controlled Pure Analog-Output Tap-Tempo LFO: Offers four distinctive waveforms (selected by holding the Tap[Wave] footswitch) and a staggeringly wide range of speeds, displayed in real-time via a dedicated tempo/wave LED.
• Full Wet/Dry Mix Control
• Traditional Width and Rate Controls
• Lag and Shine Controls: Allow the Analog Chorus/Vibrato Deluxe to cover a wide range of sounds, from traditional to contemporary, subtle to bold, gentle and soft to bright and highly present, refined to wild, silky-smooth to nearly violent (and even glitched-out).

Sound Capabilities:

• Versatility: Effortlessly morph from tight and crisp rack-style studio chorus to loose, dark, and murky old-school warm, fluid pitch vibrato, and all shades in between.
• Extreme Settings: Create "drunk auto-tune" madness with the Glitch wave and a slow Rate, bleep and bloop like a broken computer with the Square wave and higher Rates, and with more "sane" settings, create smooth and tender pitch vibrato with the Sine wave. Return to traditional sounds with all knobs at noon running the even-keeled, traditional Triangle wave.

Specifications:

• 100% Pure-Analog BBD Modulation
• 100% Pure-Analog Signal Path
• High-Fidelity Frequency Response:
  • Dry Freq. Response: 22KHz - 15Hz
  • Wet (BBD) Freq. Response: 11.6KHz - 16Hz
• High Headroom (18VDC Capable)
• Tap-Tempo with Dedicated, Real-Time LED Waveform/Rate Indicator
• Extremely Wide LFO Speed Range:
  • Rate Knob: 16.66Hz - 0.423Hz cycle (60ms - 2.36s)
  • **Up to 0.076Hz (13s) cycle via tap-tempo footswitch
• Four True-Analog Waveforms (selected via Tap[Wave] footswitch):
  • Triangle
  • Square
  • Sine
  • Glitch/Random
• True-Bypass

Input Impedance: ~500KΩ Output Impedance: ~2KΩ Power: 9VDC - 18VDC 2.1mm negative center-pin power Current Draw: ~62mA (100mA recommended)

Dimensions and Weight:

• Dimensions: 3.75"W x 4.72"L x 2"H
• Weight: 16oz

Handmade with pride, love, and a focus on ease of use and a wide range of incredible modulation tones. If you like chorus and vibrato effects, you will LOVE the Analog Chorus/Vibrato Deluxe.
